Description

We are HTRC direct factory sellers selling on Wal Mart, and our products provide warranty and lifelong service

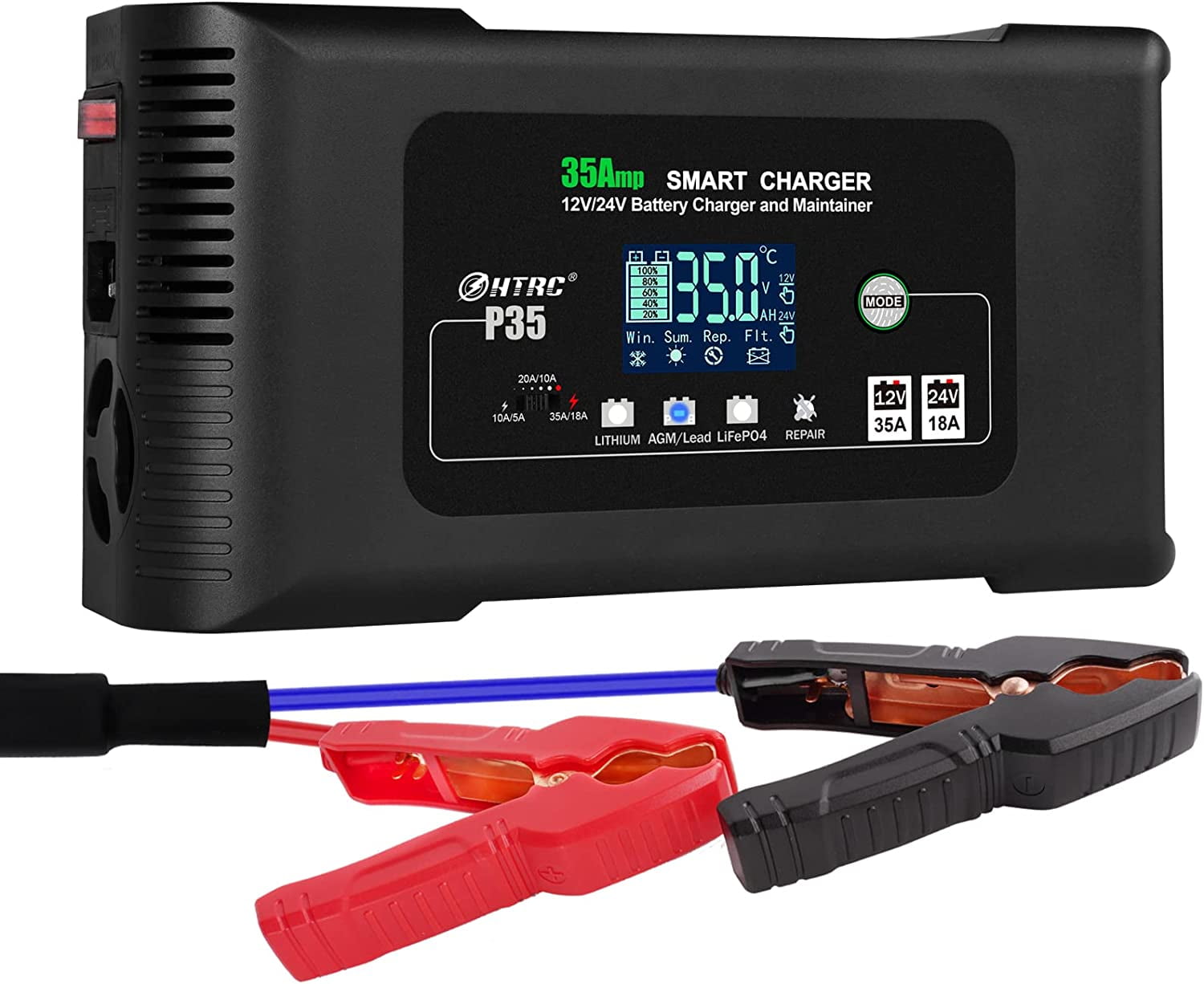

P35 smart battery charger

35 amp smart battery charger Problem

1: Can’t reach the maximum charging current? To protect the battery, the system automatically identifies the battery voltage and selects the most appropriate current to charge the battery. When the battery voltage is low (for example, the 12V battery voltage is less than 11V), the system automatically charges the battery at the maximum current. (3 gears can adjust charging current, large current, fast charging) Problem.

2: The LifePO4 battery is not fully charged? When the battery is fully charged, it has a callback function, reducing the charge by about 1V-2V, which is normal. Added a small current after full charge uninterrupted charging.

3: Fan noise? It is normal that the fan has wind.

P35 parameters

AC input :100v / 240v~ 50/60 hz.

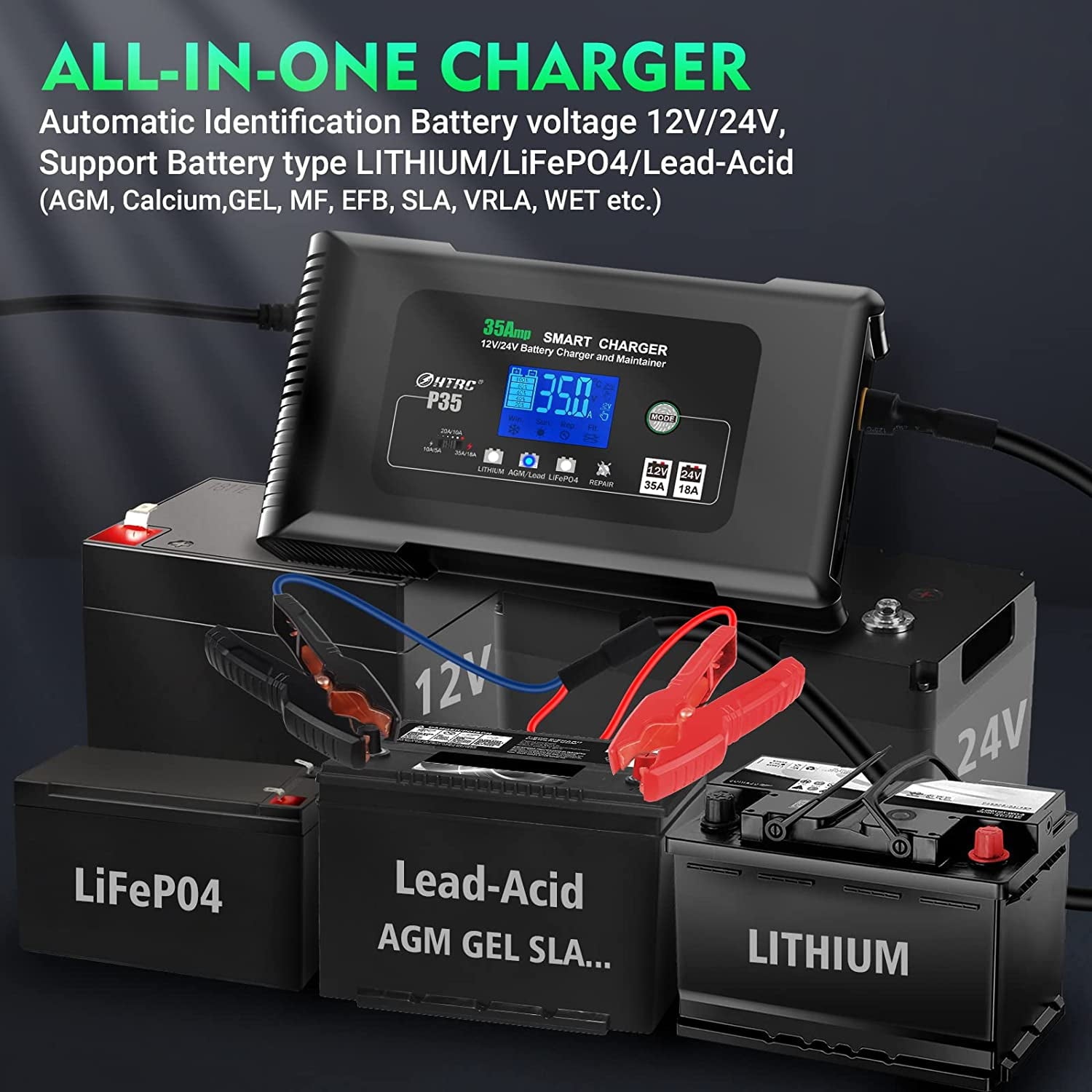

Output voltage :12V / 24V. (normal – Max:13.2V-14.6V / 26.5V-29.2V). Lithium /LiFePO4/ lead acid (AGM,GEL,EFB, MF, Flooded, VRLA, SLA and wet battery..).

Output current :12V35A & 24V18A .

Support ah: 2AH-400AH… can have more capacity, the larger the capacity needs longer charging time.

Minimum starting voltage > 2.0 V.

Power and load :MAX; 450 W.

Size :230 x125x70mm(9 4.9 2.7inches) .Net weight: 1000g

Note :1:Only charge the lithium battery with battery protection board(BMS).

2:Charge the battery below 30AH with the minimum current

Features:35Amp|Brand:HTRC|Manufacturer Part Number:P35|Manufacturer:HTRC
